Real-time health data just got real with the Blaze equine wellness system. The easy-to-attach tail wrap and sensor measures real-time heart
rate, strides, gait, skin temperature change, distance and more1 during activities. When paired with your smartphone or Garmin smartwatch, you
can get insights into your horse’s health and fitness — and make more informed decisions about their well-being and training.
DESIGNED FOR HORSES

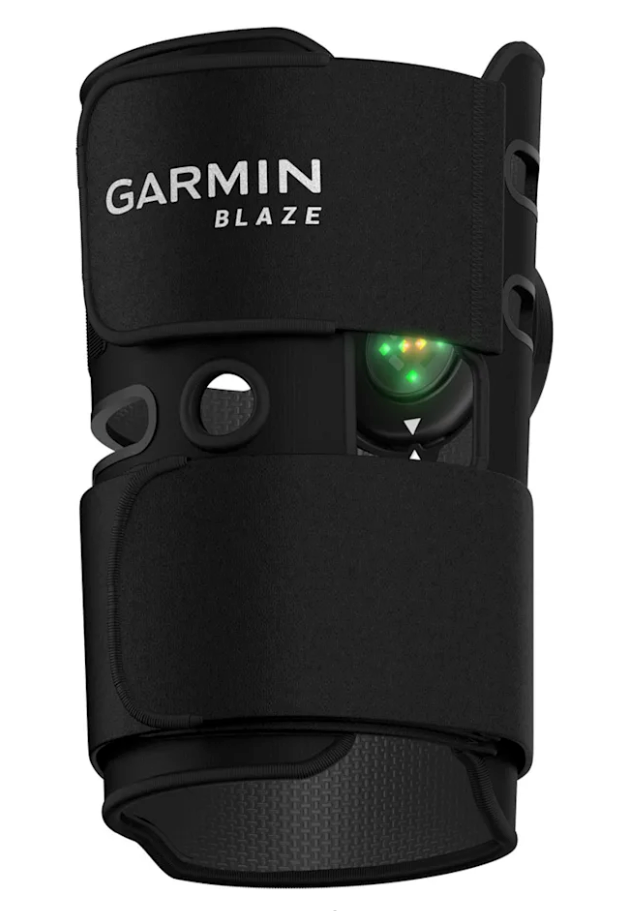

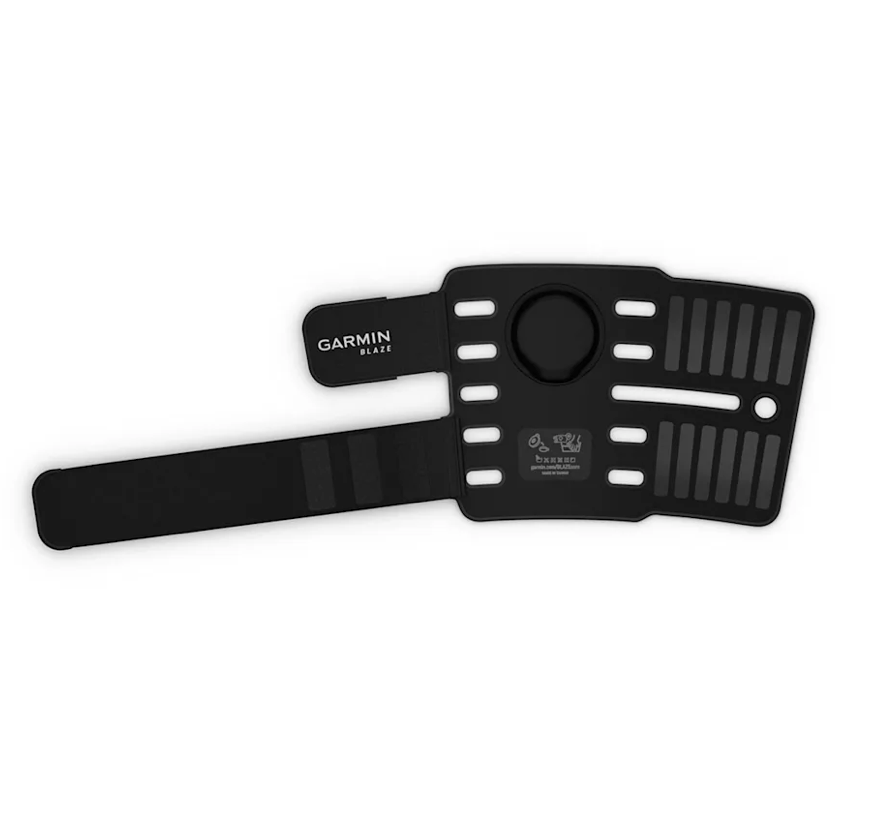

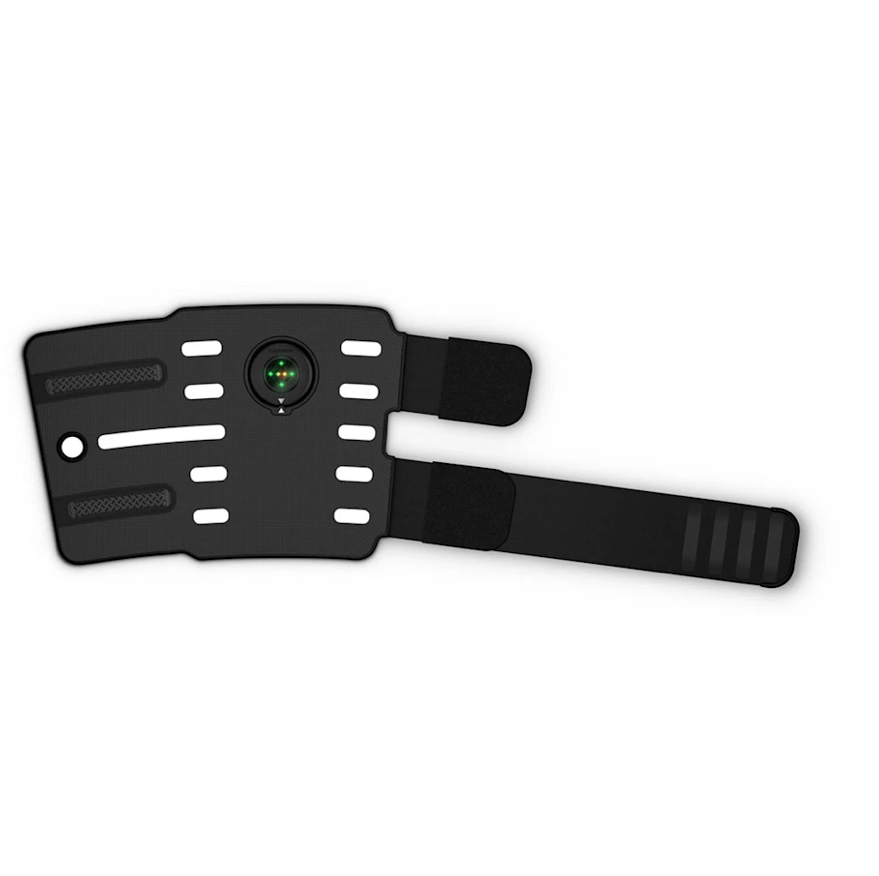

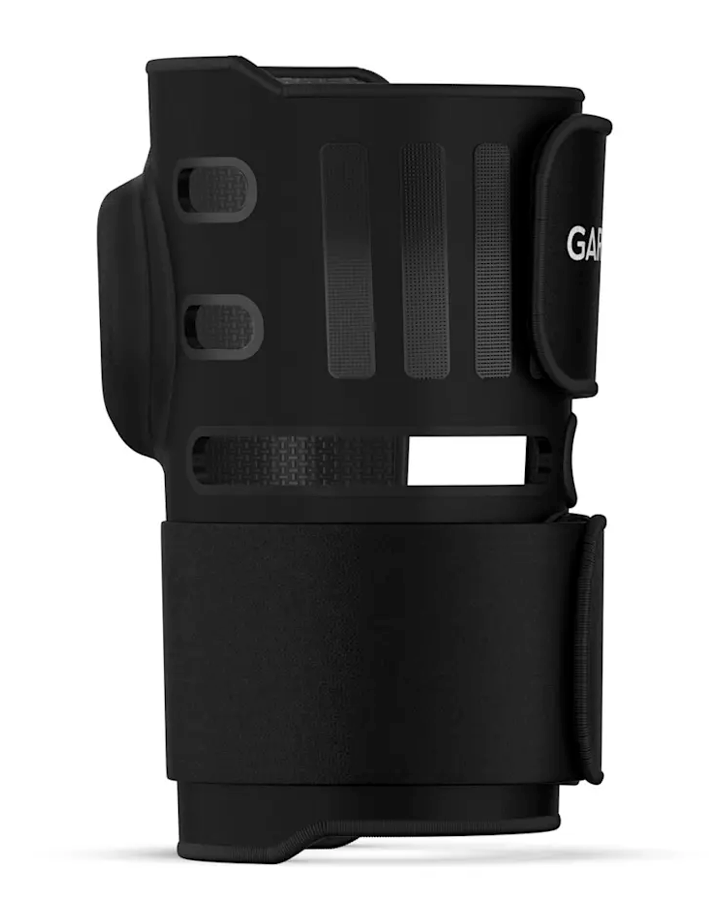

The Blaze equine wellness system includes a durable and washable neoprene wrap with hook-and-loop straps and a removable, lightweight and power-efficient sensor.
SEE REAL-TIME STATS
Pair with the Blaze™ mobile app on your smartphone, or use the Blaze app from the Connect IQ™ Store on your compatible Garmin smartwatch to view heart rate, strides, gait, distance and more1 (requires a connection with BLUETOOTH®technology).
WRAP AND USE

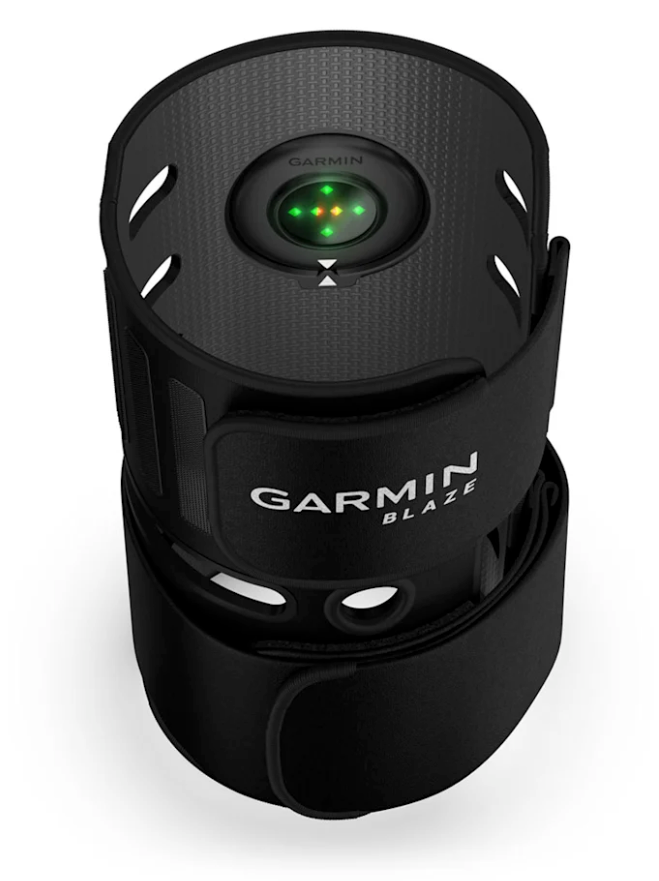

The easy-to-attach tail wrap holds the sensor to the underside of your horse’s tail to gather health and fitness metrics without special skin preparation.
ADVANCED SENSOR

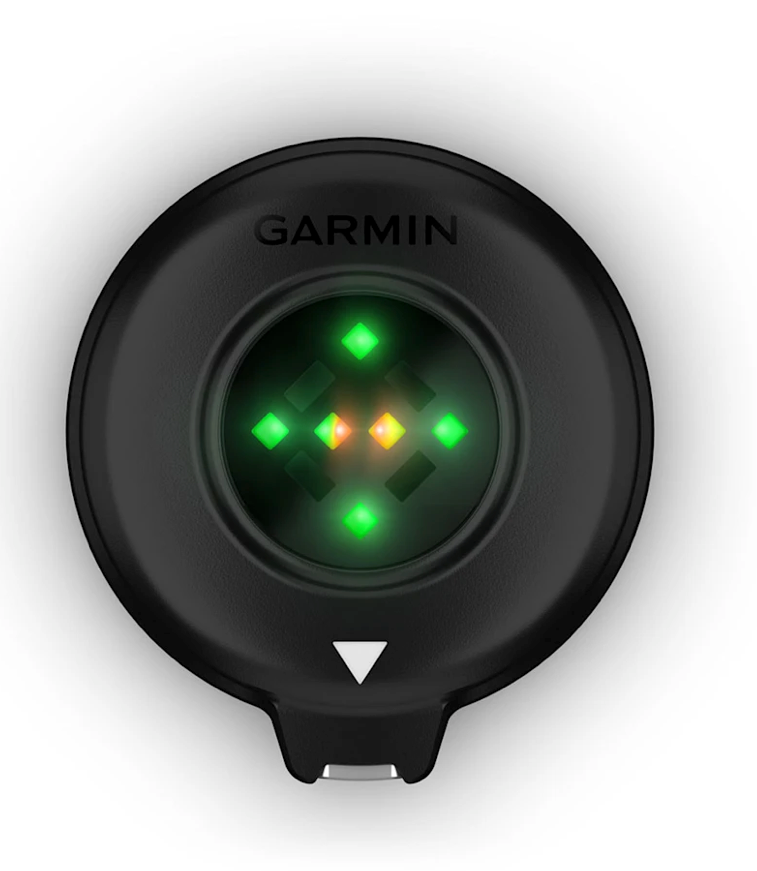

The equine optical heart rate monitor provides data under motion and environmental conditions.
POST-ACTIVITY INSIGHTS
Review post-activity details on the Blaze mobile app, including recovery rate, time in heart rate zones, skin temperature, activity highlights and more.
DATA AT YOUR WRIST
Use the Blaze app on your compatible Garmin smartwatch to track specific activities, including training, recovery and transport (requires a connection with BLUETOOTH technology).
TRACK MULTIPLE HORSES
Use the wrap and sensor on multiple horses, and create individual profiles in the Blaze app.
SKIN TEMPERATURE CHANGES
After a few minutes of use, you can see how your horse’s average skin temperature changes, which can be related to activity, environment, potential illness and more.
HEAT SCORE
Heat score is the combined total of the current air temperature and humidity. Based on that total, the heat score will guide you on the safety of riding at that time.
VIEW YOUR ACTIVITIES
See a GPS location summary after your training or transport activities when paired with your Garmin smartwatch or smartphone.
BATTERY LIFE
Get long battery life of up to 25 hours between charges. Easily remove the sensor from the wrap for cleaning and charging.
General |
|
| MODULE/SENSOR DIMENSIONS | 40.25 mm (1.5″ diameter); 8.8 mm (0.35″ width) |
|---|---|
| TAIL WRAP DIMENSIONS | Wrap (laid-out) with extended strap: 457 x 145 mm (18″ x 5.7″) |
| STRAP MATERIAL | Neoprene fabric with hook-and-loop straps |
| WEIGHT | Module/sensor only: 15.6 g (0.5 oz) Module/sensor and tail wrap: 74 g (2.6 oz) |
| WATER RATING | IPX7 |
| BATTERY TYPE | Internal rechargeable lithium-ion (Garmin proprietary clip charger cable with USB-C® connector) |
| BATTERY LIFE | Up to 25 hours |
| DETACHABLE MODULE | Yes |
| STATUS LED | Yes (tri-colour) |
| BUTTON | On sensor |
Connectivity |
|
| CONNECTIVITY | BLUETOOTH© technology |
|---|---|
| DISTANCE/RANGE | 10 m (33 ft) |
| PAIRS WITH BLAZE™ APP | Yes (Apple® and Android™) |
| PAIRS WITH CONNECT IQ™ STORE APP | Via compatible Garmin smartwatch |
| NUMBER OF CONCURRENT CONNECTIONS SUPPORTED | One primary user; any number of spectators via optional broadcast mode |
Features |
|
| EQUESTRIAN ACTIVITY TRACKING | Yes |
|---|---|
| REAL-TIME MONITORING | Yes |
| HEART RATE | Yes |
| HR ZONES | Yes |
| THRESHOLD ALERTS | Yes (alerts for no heart rate detected, elevated heart rate, change in skin temperature, severe heat score, cold weather advisory, session ended, low battery, software updates) |
| ACTIVITY TYPES | Outdoor/Indoor training, Recovery, Transport |
| SKIN TEMPERATURE CHANGES | Yes |
| HEAT SCORE | Yes |
| WEATHER | Yes (via Blaze smartphone app ) |
| LOCATIONS | Yes (when sensor is paired to GPS-enabled smartwatch; also available when paired with your GPS-enabled smartphone) |
| DISTANCE | Yes |
| SPEED | Yes |
| STRIDES | Yes |
| GAIT DETECTION | Yes |
